ADAPTER CLAMP X MNPT T316L #7

Attribute name	Attribute value
Material Type	316L
Size	4.0X3.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-4X3-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP

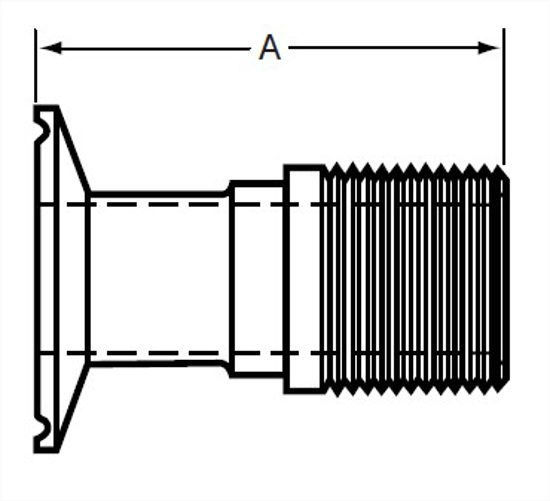

A, in.	3
A, mm.	76.2
Product Weight	2.58

Size

4.0X3.0

Connections

Clamp X Male NPT

Wall Thickness

.083X.065

Material Test Reports

MTR’s Available Upon Request

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

Click here to request 3D Step File

Alfa Laval Part Number

21MP

Wayland Part Number

W21MP

Sanitary Solutions Part Number

SS21MP

A, in.

3

Product Weight

2.58
