ADAPTER CLAMP X MNPT T316L 15 RA EP ID/32 RA OD SF4

Attribute name	Attribute value
Size	.75X.375
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	MaxPure
BPE Table #	N/A
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	.75X.375
Wall Thickness	.065X.035
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	Click here to request 3D Step File
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

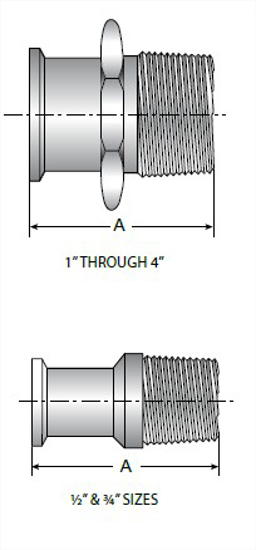

A, in.	2
A, mm.	50.8
Product Weight	0.141

Size

.75X.375

Industry Standard

MaxPure

ID / OD Polish

15 µin Electropolished ID / 32 µin Mechanical OD

SF Number

SF4

Wall Thickness

.065X.035

Country of Origin

USA, Israel

Passivated

Passivated per ASTM A967

Cad Model File

Click here to request 3D Step File

Specification Document

VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

A, mm.

50.8
