92 DEG ELBOW BUTTWELD 6 MO 20 RA EP ID/32 RA OD SF5

Attribute name	Attribute value
Size	2
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	2
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S926L2.0-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	B2S92

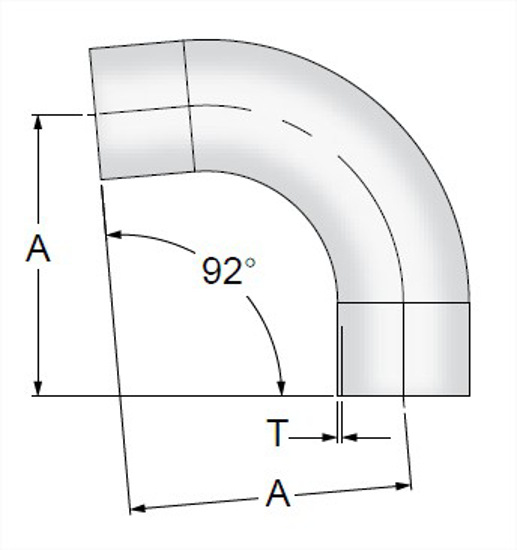

A, in.	4.69
A, mm.	119.13
Product Weight	1.005

Surface Finish

PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD

BPE Table #

N/A

Polish Code

PO

OD Tube Size

2

Material-Type

6MO

Material Trade Names (Reference)

AL6XN, AL-6XN®, ULTRA 6XN®

Material Test Reports

MTR’s Ship Automatically With Each Order

Pressure Rating

Per current BPE standards - section DT

Catalog File

MaxCore.pdf

A, in.

4.69

Product Weight

1.005
