90 DEGREE ELBOW WITH TANGENTS ONE END CLAMP T304 3A

Attribute name	Attribute value
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2C1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-1.5-7-304
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM

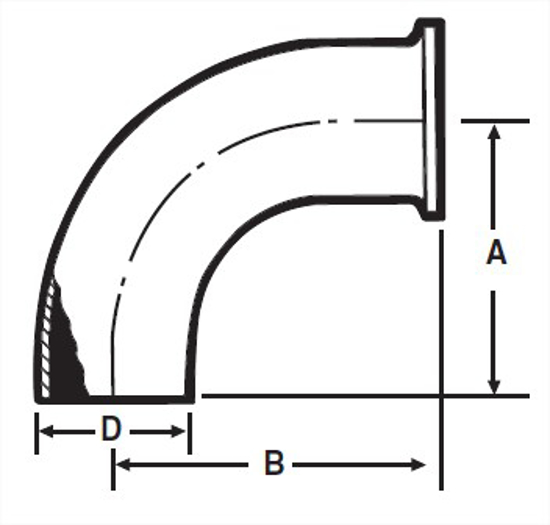

A, in.	2.935
A, mm.	74.55
B, in.	3.437
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.5

Material Type

304

Industry Standard

3A

Connections

Weld X Clamp

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Cad Model File

E2C1.5.STEP

Alfa Laval Part Number

L2CM

Wayland Part Number

WL2CM

Sanitary Solutions Part Number

SS2CM

A, in.

2.935

B, in.

3.437

D, mm.

38.1

Product Weight

0.5
