90 DEGREE ELBOW WELD X THREAD T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2T3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-3-7-316

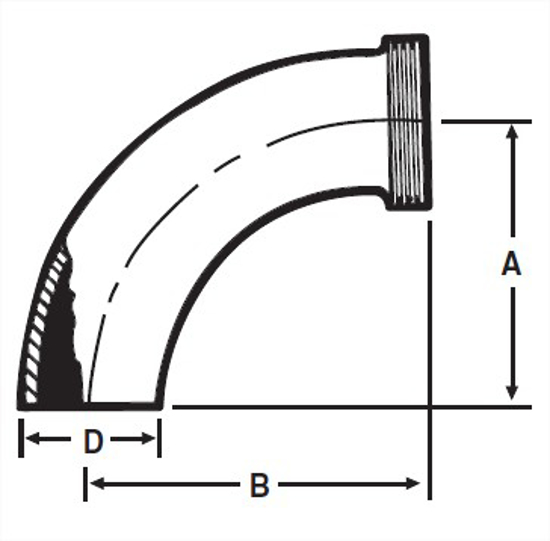

A, in.	6.937
A, mm.	176.2
B, in.	7.218
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	2.46

Material Type

316L

Industry Standard

3A

Connections

Weld X Threaded Bevel Seat

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

E2T3.0.STEP

Steel O’brien Part Number

L2C-3-7-316

A, mm.

176.2

D, in.

3

T Nom Wall, in.

0.065
