90 DEGREE ELBOW WELD X THREAD T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2T1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-1-7-316

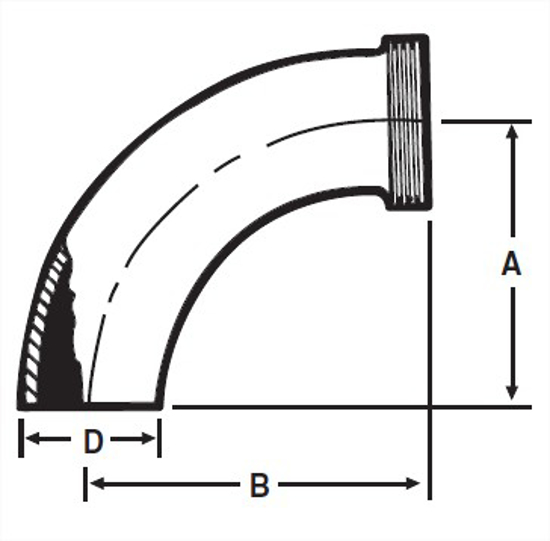

A, in.	2.062
A, mm.	52.37
B, in.	2.75
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.34
