90 DEGREE ELBOW WELD X THREAD T304 3A

Attribute name	Attribute value
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2T1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-1.5-7-304

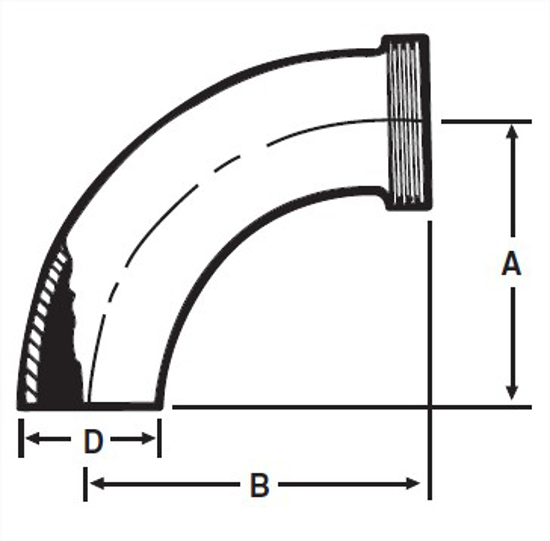

A, in.	2.937
A, mm.	74.6
B, in.	3.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.56

Material Type

304

Industry Standard

3A

Connections

Weld X Threaded Bevel Seat

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Cad Model File

E2T1.5.STEP

Steel O’brien Part Number

L2C-1.5-7-304

A, mm.

74.6

D, in.

1.5

T Nom Wall, in.

0.065
