90 DEGREE ELBOW CLAMP T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-2.5-316
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP

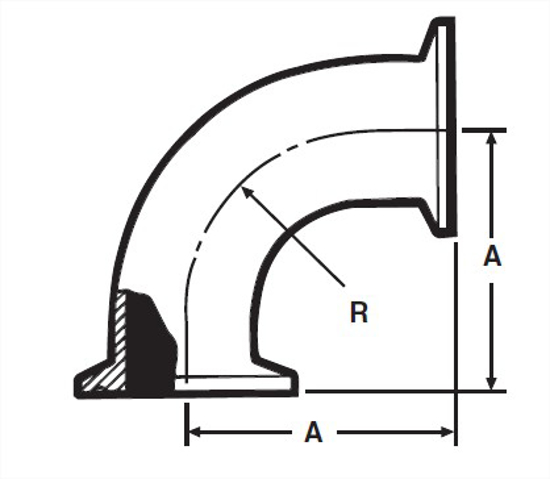

A, in.	4.25
A, mm.	107.95
R, in.	3.75
Product Weight	1.12

Material Type

316L

Industry Standard

3A

Connections

Clamp X Clamp

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

EG2C2.5.STEP

Alfa Laval Part Number

2CMP

Wayland Part Number

W2CMP

Sanitary Solutions Part Number

SS2CMP

A, in.

4.25

R, in.

3.75
