90 DEG ELBOW CLAMP X WELD 6 MO 20 RA ID/32 RA OD SF1

Attribute name	Attribute value
Size	1.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE

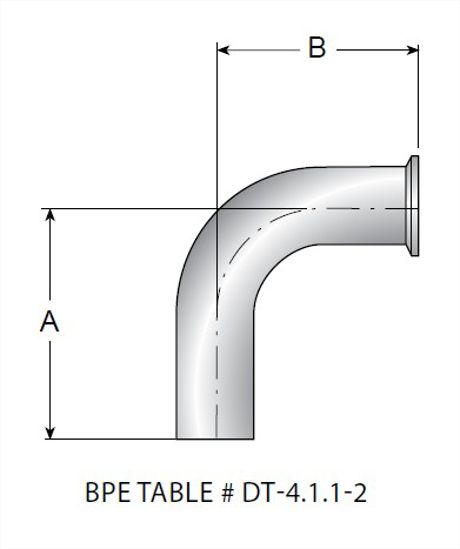

BPE Table #	DT-4.1.1-2
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C6L1.5-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM
A, in.	3.75
A, mm.	95.25
B, in.	2.75
Product Weight	0.523
