90 DEG ELBOW BUTTWELD 6 MO 20 RA ID/32 RA OD SF1

Attribute name	Attribute value
Size	4
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	4
Wall Thickness	0.083
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L4.0-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	B2S

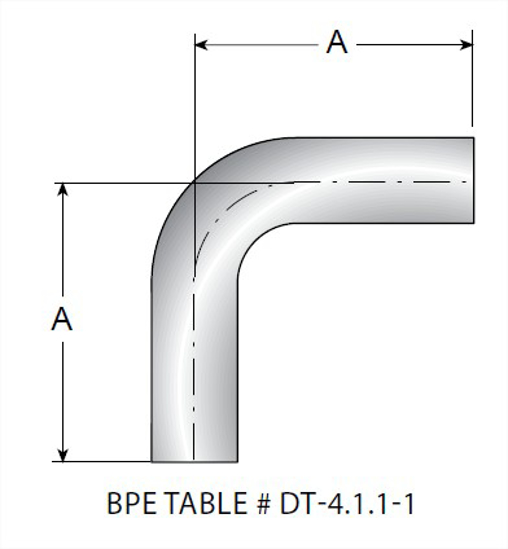

A, in.	8
A, mm.	203.2
Product Weight	4.059

Surface Finish

PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD

BPE Table #

DT-4.1.1-1

Polish Code

PL

OD Tube Size

4

Material-Type

6MO

Material Trade Names (Reference)

AL6XN, AL-6XN®, ULTRA 6XN®

Material Test Reports

MTR’s Ship Automatically With Each Order

Pressure Rating

Per current BPE standards - section DT

Catalog File

MaxCore.pdf

A, in.

8

Product Weight

4.059
