88 DEGREE BRANCH WELD TEE T316L 20 RA ID/LT POL OD SF1

Attribute name	Attribute value
Size	2
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	BPE;3A
BPE Table #	N/A
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WWW886L2.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

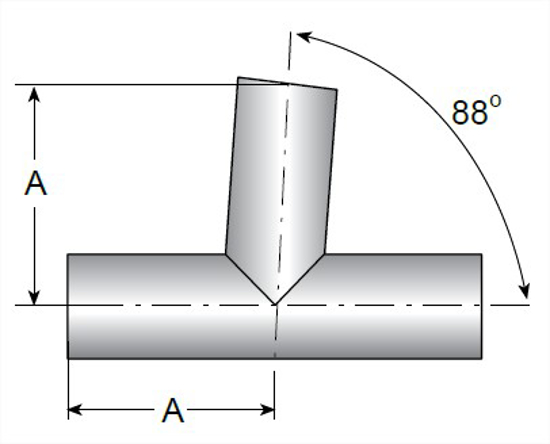

A, in.	2.875
A, mm.	73.03
Product Weight	0.924

Surface Finish

PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD

BPE Table #

N/A

Polish Code

PC

OD Tube Size

2

Material-Type

316L

Material Test Reports

MTR’s Ship Automatically With Each Order

Pressure Rating

Per current BPE standards - section DT

Catalog File

MaxPure BPE Fittings.pdf

A, in.

2.875

Product Weight

0.924
