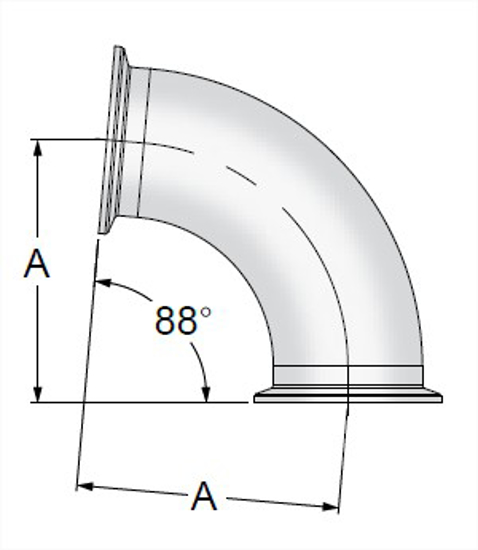

88 DEG ELBOW CLAMP T316L 15 RA EP ID/LT POL OD SF4

Attribute name	Attribute value
Size	2
Surface Finish	PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD
Industry Standard	BPE;3A
BPE Table #	N/A
ID / OD Polish	15 µin Electropolished ID / Light Polish OD
Polish Code	PD
SF Number	SF4
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG2C886L2.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

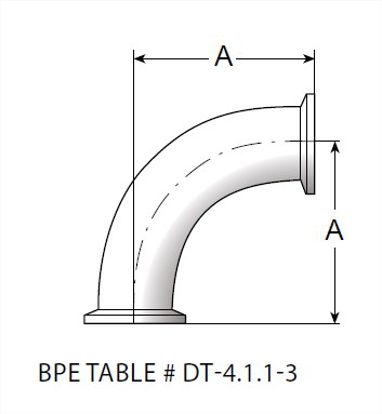

A, in.	3.51
A, mm.	89.15
Product Weight	0.772

Surface Finish

PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD

BPE Table #

N/A

Polish Code

PD

OD Tube Size

2

Material-Type

316L

Material Test Reports

MTR’s Ship Automatically With Each Order

Pressure Rating

Per current BPE standards - section DT

Catalog File

MaxPure BPE Fittings.pdf

A, in.

3.51

Product Weight

0.772
