88 DEG ELBOW CLAMP A22 20 RA EP ID/32 RA OD SF5

Attribute name	Attribute value
Size	1.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG2C886L1.5-...STEP
Catalog File	MaxCore.pdf

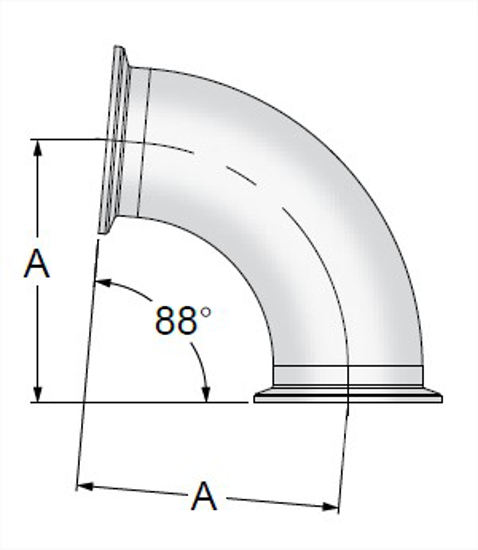

A, in.	2.76
A, mm.	70.1
Product Weight	0.47

Size

1.5

Industry Standard

BPE

ID / OD Polish

20 µin Electropolished ID / 32 µin Mechanical OD

SF Number

SF5

Wall Thickness

0.065

UNS #

N06022

Country of Origin

USA, Israel

Passivated

Passivated per ASTM A967

Cad Model File

TEG2C886L1.5-...STEP

A, in.

2.76

Product Weight

0.47
