88 DEG ELBOW BUTTWELD T316L 15 RA EP ID/ 32 RA OD SF4

Attribute name	Attribute value
Size	2
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	BPE;3A
BPE Table #	N/A
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S886L2.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

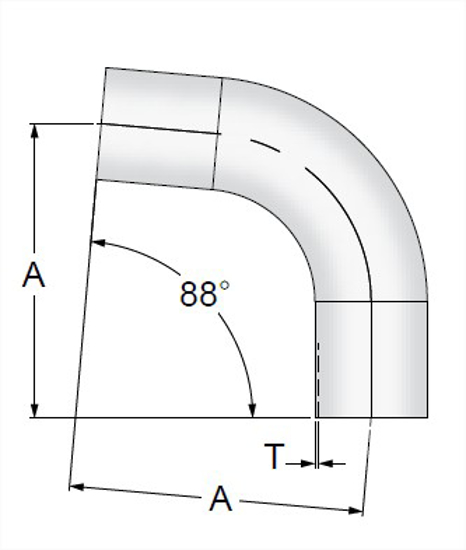

A, in.	4.81
A, mm.	122.17
Product Weight	0.97

Size

2

Industry Standard

BPE;3A

ID / OD Polish

15 µin Electropolished ID / 32 µin Mechanical OD

SF Number

SF4

Wall Thickness

0.065

Country of Origin

USA, Israel

Passivated

Passivated per ASTM A967

Cad Model File

TE2S886L2.0-...STEP

Specification Document

VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

A, mm.

122.17
