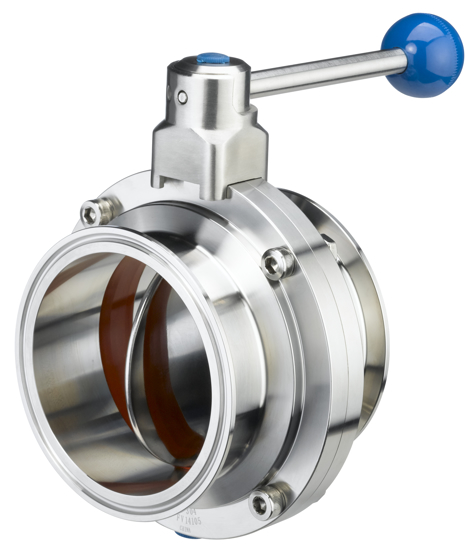

6.0" CLAMP BUTTERFLY VALVE, 304, EPDM SEAT, 4 POS HANDLE

Attribute name	Attribute value
Material Type	304
Size	6
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf
A, in.	8.858
A, mm.	224.99
B, in.	6.567
D, in.	5.118
D, mm.	130

Material Type

304

Seat Material

EPDM

Connections

Clamp X Clamp

Wall Thickness

0.109

Seat-Material

EPDM

Country of Origin

China

Valve Pressure Rating

Max 145 psi

Cad Model File

Click here to request 3D Step File

A, in.

8.858

B, in.

6.567

D, mm.

130
