45 DEGREE ELBOW WELD X THREAD T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KT1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-1.5-7-316

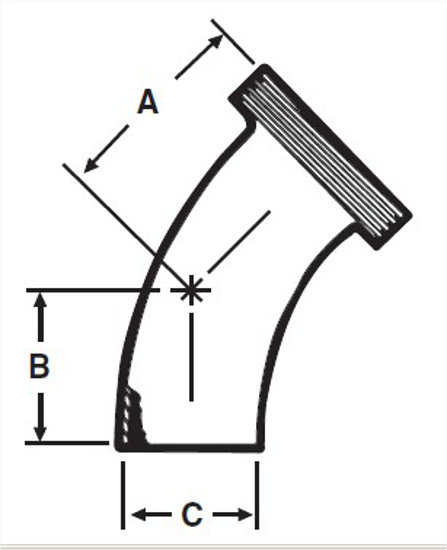

A, in.	2.343
A, mm.	59.51
B, in.	1.625
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.46

Material Type

316L

Industry Standard

3A

Connections

Weld X Threaded Bevel Seat

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

E2KT1.5.STEP

Steel O’brien Part Number

L2K-1.5-7-316

A, mm.

59.51

C, in.

1.5

T Nom Wall, in.

0.065
