45 DEGREE ELBOW WELD X THREAD T304 3A

Attribute name	Attribute value
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KT3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-3-7-304

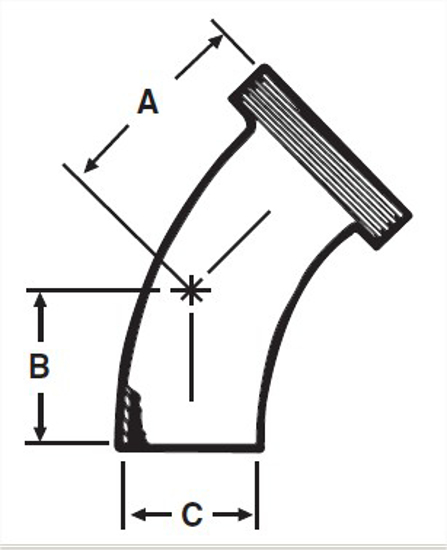

A, in.	4.593
A, mm.	116.66
B, in.	3.687
C, in.	3
C, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.84
