45 DEGREE ELBOW WELD X CLAMP T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KC6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-6-7-316
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM

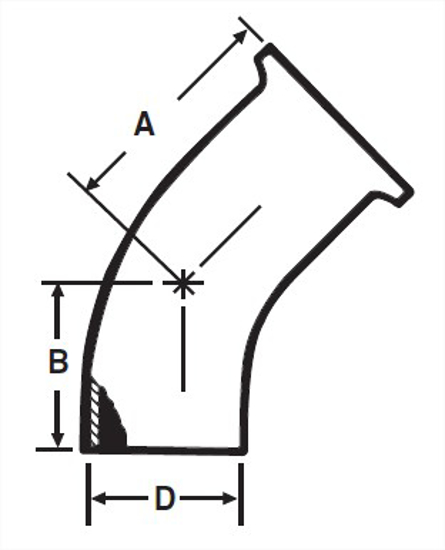

A, in.	4.625
A, mm.	117.48
B, in.	3.75
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
