45 DEGREE ELBOW WELD X CLAMP T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KC3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-3-7-316
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM

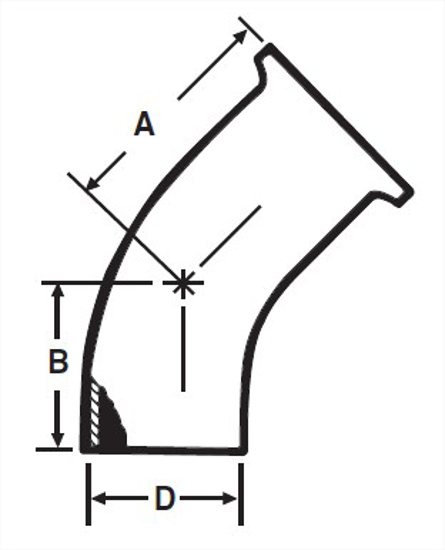

A, in.	4.187
A, mm.	106.35
B, in.	3.687
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.38
