45 DEG ELBOW BUTTWELD T316L 20 RA ID/LT POL OD SF1

Attribute name	Attribute value
Size	4
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-4
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2KS6L4.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

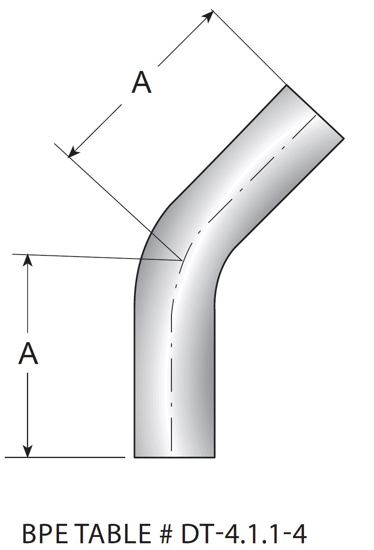

A, in.	4.5
A, mm.	114.3
Product Weight	2.706
