45 DEG ELBOW BOTH ENDS E14WI T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI

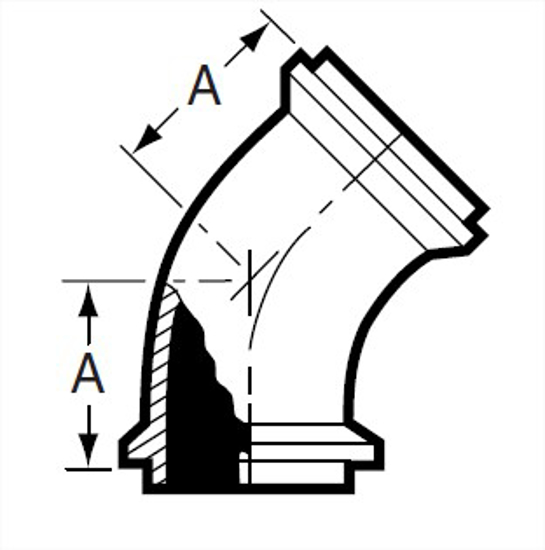

A, in.	2.031
A, mm.	51.59
Product Weight	0.74

Material Type

316L

Industry Standard

3A

Connections

Male E-Line X Male E-Line

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

Click here to request 3D Step File

Alfa Laval Part Number

HDI-2HI

Dixon Part Number

B2HI

Sanitube Part Number

2HI

A, mm.

51.59
