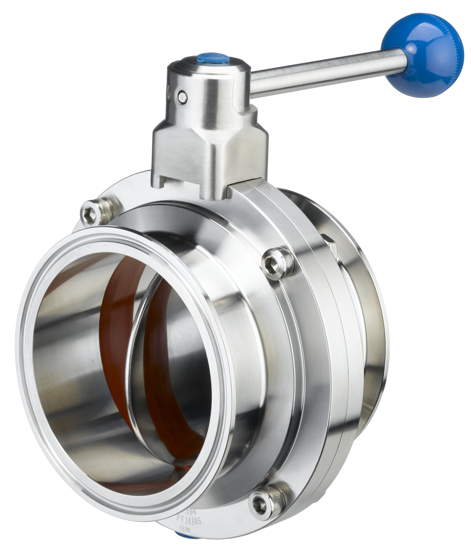

4.0" WELD BUTTERFLY VALVE, 316L, VITON SEAT

Attribute name	Attribute value
Material Type	316
Size	4
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	Viton
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf
A, in.	6.063
A, mm.	154
B, in.	4
D, in.	2.52
D, mm.	64.01
