3 SCH 5 CLAMP FERRULE LONG T316L FULL POLISHED

Attribute name	Attribute value
Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 5 Pipe
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7

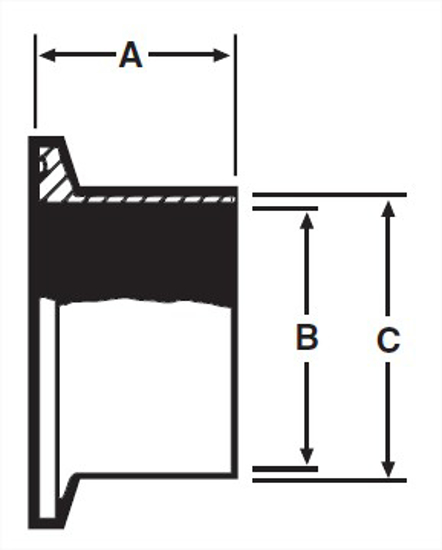

A, in.	1.125
A, mm.	28.58
B, in.	3.334
C, in.	3.5
C, mm.	88.9
T Nom Wall, in.	0.083
