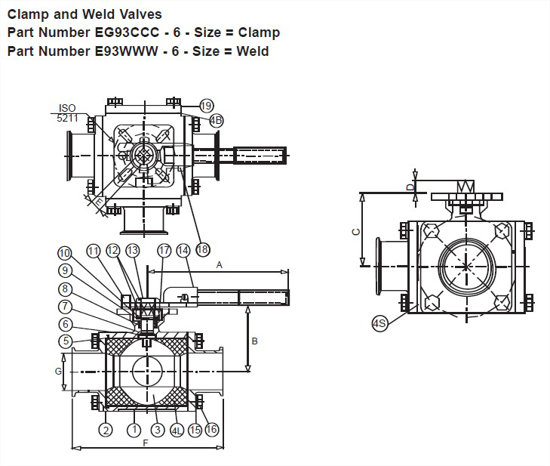

Picture of 3-PC/T-PORT/3-WAY T316 BALL VALVE/CLAMP/PTFE CAVITY FILLER

3-PC/T-PORT/3-WAY T316 BALL VALVE/CLAMP/PTFE CAVITY FILLER

Manufacturer: VNE

In Stock: 10000

SKU: EG93CCC-6.75-T

VNE part number: 622-10760

Please log in to view pricing

Products specifications

Attribute name	Attribute value
Material Type	CF8M (T316)
Size	0.75
Ball Style	T Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	EG93CCC-6.75-T.step
Catalog File	valves.pdf
A, in.	4.75
A, mm.	120.64999999999999
B, in.	3.25
C, in.	1.875
C, mm.	47.625
D, in.	0.354
D, mm.	8.991599999999998
E, in.	0.354
E, mm.	8.991599999999998
F, in.	5
F, mm.	127
G, in.	0.625
G, mm.	15.875
T Nom Wall, in.	0.065
