3" CLAMP SR NC AIR OPER BFV T304 VITON SEAT

Attribute name	Attribute value
Material Type	304
Size	3
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Cad Model File	51C-63.0AV_VBAC-XX.STEP
Catalog File	valves.pdf

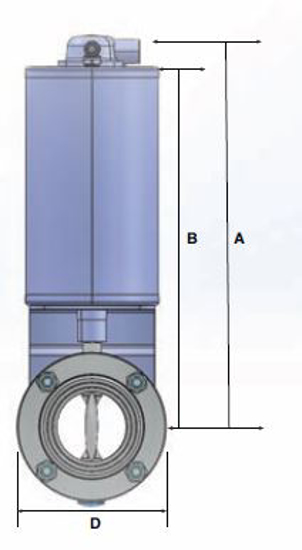

A, in.	10.939
A, mm.	277.85
B, in.	10.093
C, in.	14.759
C, mm.	374.88
E, in.	5.04
E, mm.	128.02
