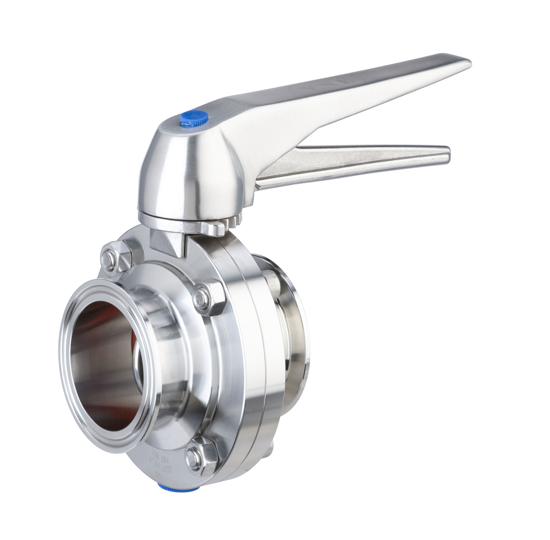

2.5" WELD BUTTERFLY VALVE, 316L, SILICONE SEAT

Attribute name	Attribute value
Material Type	316
Size	2.5
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf
A, in.	4.528
A, mm.	115.01
B, in.	2.5
D, in.	2.205
D, mm.	56.01
