2.5 SCH. 5 SHORT WELD CLAMP FERRULE T316L

Attribute name	Attribute value
Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 5 Pipe
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP

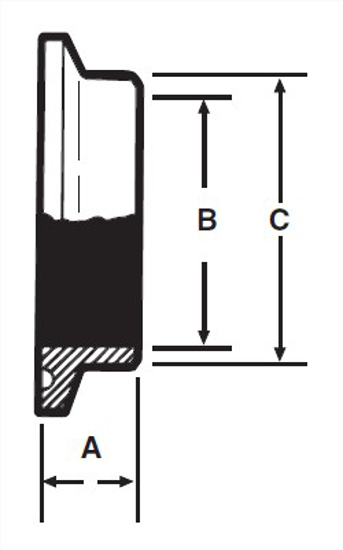

A, in.	0.5
A, mm.	12.7
B, in.	2.709
C, in.	2.875
C, mm.	73.03
T Nom Wall, in.	0.083
