2.5" CLAMP SR NC AIR OPER BFV T304 VITON SEAT

Attribute name	Attribute value
Material Type	304
Size	2.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf

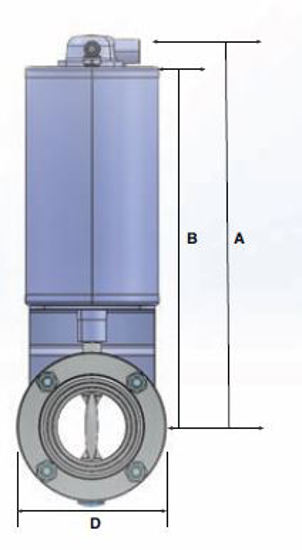

A, in.	10.526
A, mm.	267.36
B, in.	9.68
C, in.	14.346
C, mm.	364.39
D, in.	4.094
D, mm.	103.99

Material Type

304

Seat Material

Viton

ID / OD Polish

20 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

2.5

Material-Type

304

Country of Origin

Germany

Valve Pressure Rating

Max 145 psi

Actuator Pressure Rating

72.5-145 psi

Control Top - Switch Type

External Proximity Switch Available

Cad Model File

Click here to request 3D Step File

A, in.

10.526

B, in.

9.68

C, mm.

364.39

D, mm.

103.99
