Material Type
|
316 |
|
Size
|
2 |
|
Seat Material
|
EPDM |
|
Actuated Valve Fail Position Flow Pattern
|
Fail Open |
|
ID / OD Polish
|
20 µin Mechanical ID / 32 µin Mechanical OD |
|
Connections
|
Weld X Weld |
|
OD Tube Size
|
2 |
|
Wall Thickness
|
0.065 |
|
Material-Type
|
316 |
|
Seat-Material
|
EPDM |
|
Country of Origin
|
Germany |
|
Material Test Reports
|
MTR's Available Upon Request |
|
Valve Pressure Rating
|
Max 145 psi |
|
Valve Temperature Rating
|
15 - 200 F |
|
Actuator Pressure Rating
|
72.5-145 psi |
|
Actuator Temperature Rating
|
15-170 F |
|
Control Top - Switch Type
|
Open and Close Proximity Switch |
|
Control Top - Voltage
|
29.5 - 31.6 V |
|
Control Top - Nema/IP Rating
|
IP 67 |
|
Control Top - Cable Entry / Plug
|
Cable Entry - Gland Included |
|
Control Top Brand
|
ASI 3.0 VMON II |
|
Actuated-Valve-Fail-Position-Flow-Pattern
|
Fail Open |
|
Cad Model File
|
Click here to request 3D Step File |
|
Catalog File
|
valves.pdf |
|
A, in.
|
10.377 |
|
A, mm.
|
263.58 |
|
B, in.
|
9.531 |
|
C, in.
|
14.197 |
|
C, mm.
|
360.6 |
|

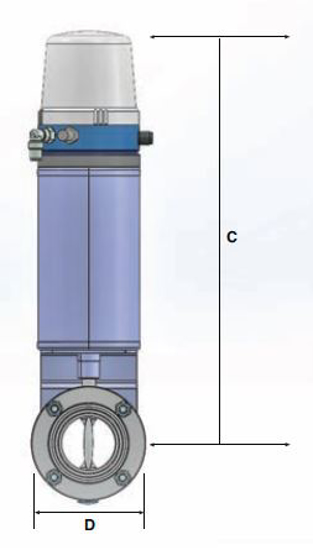

D, in.
|
3.656 |
|
D, mm.
|
92.86 |
