180 DEGREE U-BEND CLAMP 316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2WU1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	2UMP-1.5-316
Wayland Part Number	W2UMP
Dixon Part Number	B2WUMP
Sanitary Solutions Part Number	SS2WUMP
Sanitube Part Number	2WUMP

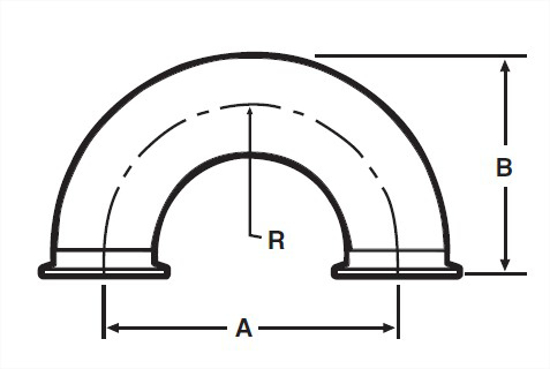

A, in.	4.5
A, mm.	114.3
B, in.	3.5
R, in.	2.25
Product Weight	0.68

Material Type

316L

Industry Standard

3A

Connections

Clamp X Clamp

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

EG2WU1.5.STEP

Steel O’brien Part Number

2UMP-1.5-316

Dixon Part Number

B2WUMP

Sanitube Part Number

2WUMP

A, mm.

114.3

R, in.

2.25
