180 DEGREE U-BEND CLAMP 304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2WU1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	2UMP-1-304
Wayland Part Number	W2UMP
Dixon Part Number	B2WUMP
Sanitary Solutions Part Number	SS2WUMP
Sanitube Part Number	2WUMP

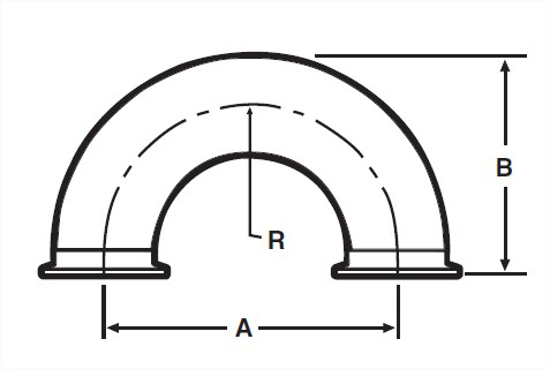

A, in.	3
A, mm.	76.2
B, in.	2.5
R, in.	1.5
Product Weight	0.52
