1.5" WELD SR NO AIR OPER BFV T304 EPDM SEAT

Attribute name	Attribute value
Material Type	304
Size	1.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf

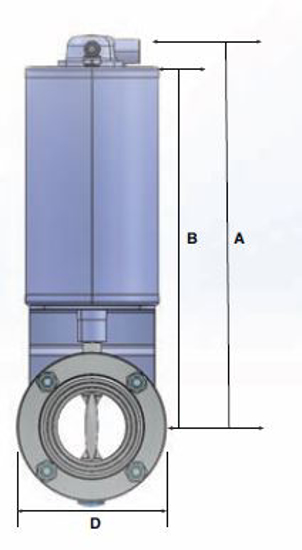

A, in.	10.012
A, mm.	254.3
B, in.	9.166
C, in.	13.832
C, mm.	351.33
D, in.	3.188
D, mm.	80.98
