1.5" CLAMP SR NC AIR OPER BFV T316L VITON SEAT

Attribute name	Attribute value
Material Type	316
Size	1.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf

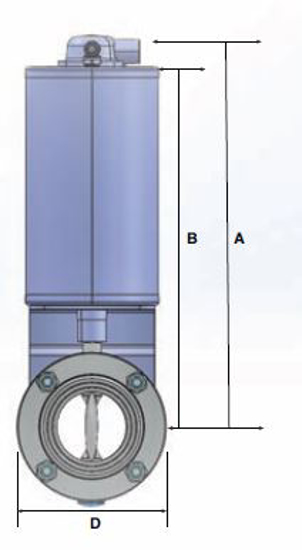

A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86
