1.5" CLAMP SR NC AIR OPER BFV T316L EPDM SEAT

Attribute name	Attribute value
Material Type	316
Size	1.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Cad Model File	51C_1.5AE-VBAC-XX.STEP
Catalog File	valves.pdf

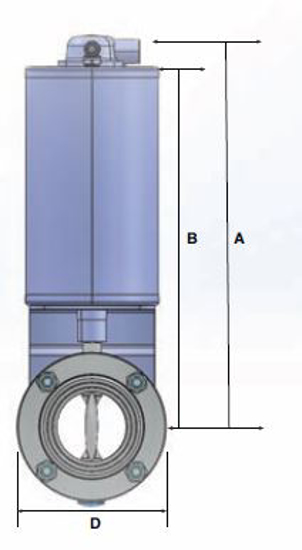

A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86

Material Type

316

Seat Material

EPDM

ID / OD Polish

20 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

1.5

Material-Type

316

Country of Origin

China

Valve Pressure Rating

Max 145 psi

Actuator Pressure Rating

72.5-145 psi

Control Top - Switch Type

External Proximity Switch Available

Cad Model File

51C_1.5AE-VBAC-XX.STEP

A, in.

10.09

B, in.

9.244

C, mm.

353.31

E, mm.

86
