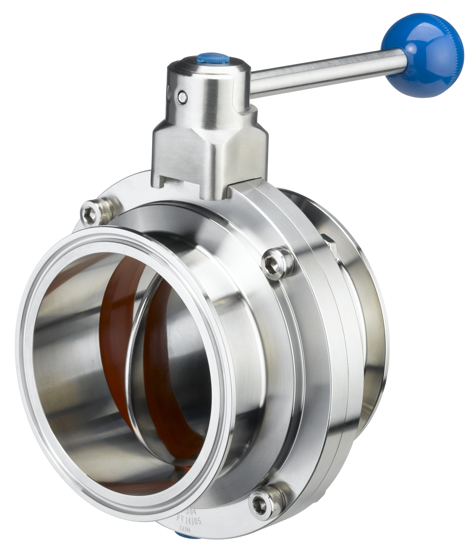

1.0" WELD BUTTERFLY VALVE, 304, SILICONE SEAT

Attribute name	Attribute value
Material Type	304
Size	1
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1
D, in.	1.969
D, mm.	50.01

Material Type

304

Seat Material

Silicone

Connections

Weld X Weld

Wall Thickness

0.065

Seat-Material

Silicone

Country of Origin

China

Valve Pressure Rating

Max 145 psi

Cad Model File

Click here to request 3D Step File

A, in.

3.071

B, in.

1

D, mm.

50.01
