1" CLAMP SR NO AIR OPER BFV T316L SILICONE SEA

Attribute name	Attribute value
Material Type	316
Size	1
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf
A, in.	9.928
A, mm.	252.17
B, in.	9.082

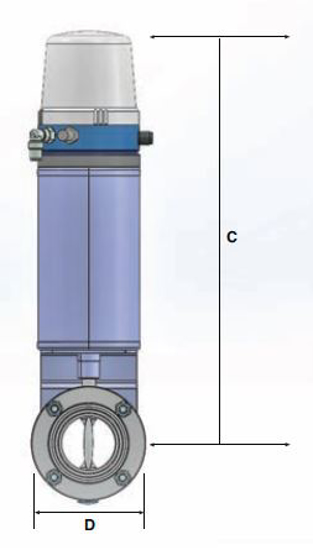

C, in.	13.748
C, mm.	349.2
E, in.	3.071
E, mm.	78

Material Type

316

Seat Material

Silicone

ID / OD Polish

20 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

1

Material-Type

316

Country of Origin

China

Valve Pressure Rating

Max 145 psi

Actuator Pressure Rating

72.5-145 psi

Control Top - Switch Type

Open and Close Proximity Switch

Control Top - Nema/IP Rating

IP 67

Control Top Brand

24 VDC - VMON II

Cad Model File

Click here to request 3D Step File

A, in.

9.928

B, in.

9.082

C, mm.

349.2

E, mm.

78
